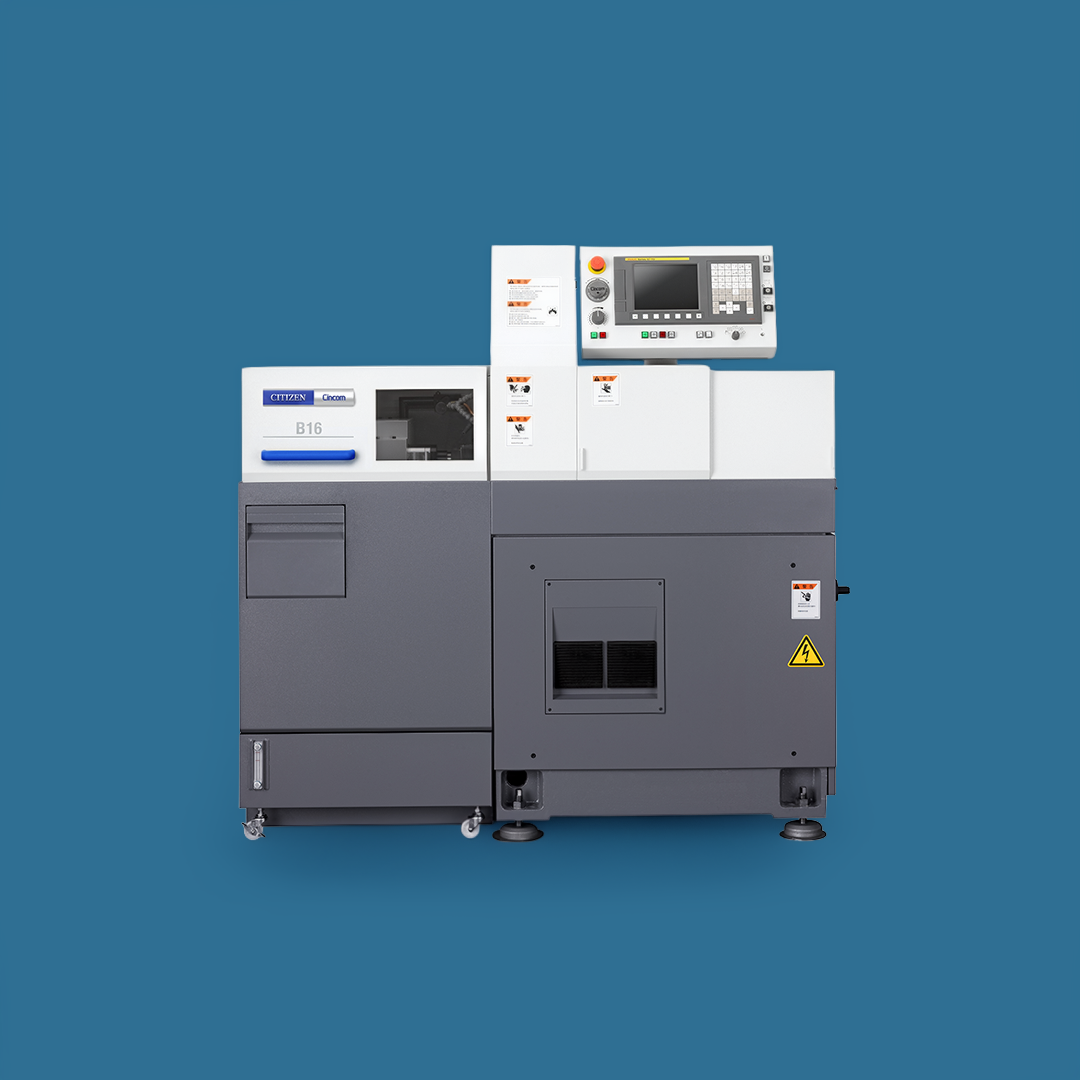

Cincom

B12E-VI

Swiss-Type Lathe

Cincom’s B series ‘best seller’ model has been revamped. And the cost has been substantially reduced.

The B series, which has sold well worldwide for a long time, has been revamped. The B16 can handle diameters up to 16 mm, so the range of target workpieces has been expanded. The B series is renowned for its speed, accuracy and high reliability at extremely low running cost. This 4th generation model retains the same tool layout granting high-accuracy machining in the proven manner.

The rigidity of the back headstock has been improved. Preprocessing for shortest cycle time is supported by a simple on-machine program check function.

The standard specifications include a comprehensive range of NC functions.

About CITIZEN

For over a century, Citizen has defined precision engineering, evolving from a premier horologist into a global leader in CNC machining. Renowned for their Cincom and Miyano lines, Citizen specializes in Swiss-type lathes that deliver unmatched accuracy for complex, small-diameter components. By pioneering technologies like Low Frequency Vibration (LFV), they provide manufacturers in the medical, aerospace, and electronics sectors with the reliability needed to master high-volume, high-tolerance production.

Technical Data & Specification

Dimension (mm)

1.622 x 837 x 1.597

Weight (kg)

1.150

Control Unit

Fanuc 0i-TD

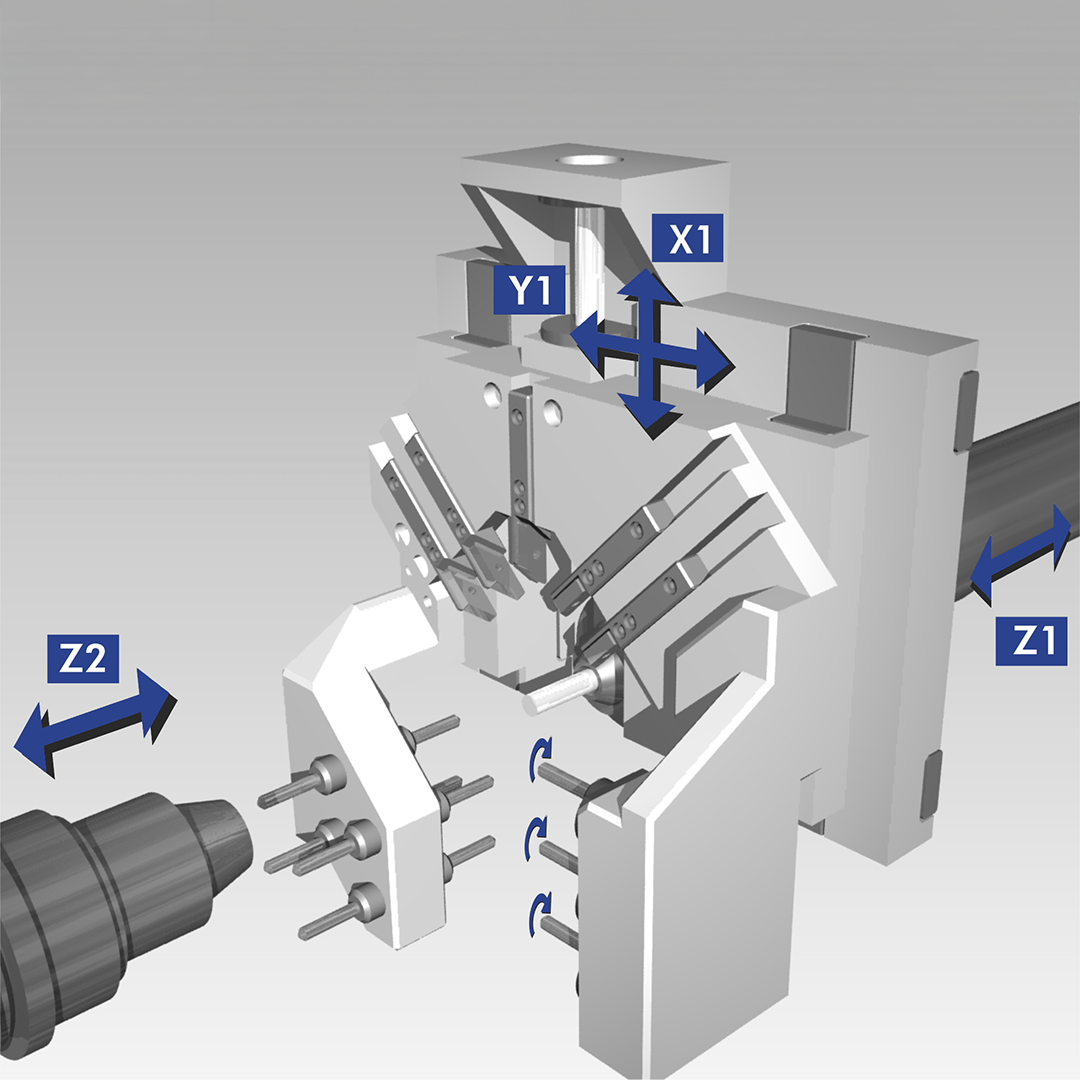

Main side

Number of axis (total)

Main spindel

Gang tool post

X1 / Y1

Maximum machining Ø (mm)

Maximum headstock stroke (mm)

140 (RGB = 62mm)

Maximum spindle speed (Rpm)

12000 (RGB= 8000Rpm)

GBL- Specification

Motor Power (kW)

3,7

Gang tool post

Turning tools

5 x 10mm

Cross rotary tools

Maximum speed (Rpm)

4.500

Motor Power (kW)

0,5

Sleeve holder for fix tools

4 front + 4 back

Axis

X1 / Y1

Front drill block

Fix tools

4 front + 4 back

Back side

Back spindle

Maximum machining Ø

Motor Power (kW)

Maximum spindle speed (Rpm)

6.000

Back working tools

Number of tools

4 ( Fix or Rotary)

Maximum speed (Rpm)

9.000

Motor Power (kW)

0,75
