Cincom

D25-1M7

Swiss-Type Lathe

New innovative control options.

New sliding headstock automatic lathe – with double gang tool post at the guide bush.

The D25 sliding head automatic lathe inspires by its high motor capacity and its large variance of workpieces. It is perfectly suited for fast and complex machining processes. The innovative control unit has been designed in accordance with state-of-the-art standards and is easy to operate.

Equipped with double gang tool post and one B axis (type VIII), the D25 sliding headstock type automatic lathe features extremely short machining times hand in hand with maximum productivity.

The high number of workpieces of the main and back spindle keeps production cost low and offers versatile machining options – everything on a single machine. As an option, bar material of up to Ø 25 mm can also be machined extending the range of workpieces even more.

About CITIZEN

For over a century, Citizen has defined precision engineering, evolving from a premier horologist into a global leader in CNC machining. Renowned for their Cincom and Miyano lines, Citizen specializes in Swiss-type lathes that deliver unmatched accuracy for complex, small-diameter components. By pioneering technologies like Low Frequency Vibration (LFV), they provide manufacturers in the medical, aerospace, and electronics sectors with the reliability needed to master high-volume, high-tolerance production.

Technical Data & Specification

Dimension (mm)

2.550 x 1.512 x 1.845

Weight (kg)

3.450

Control Unit

Mitsubishi M850W

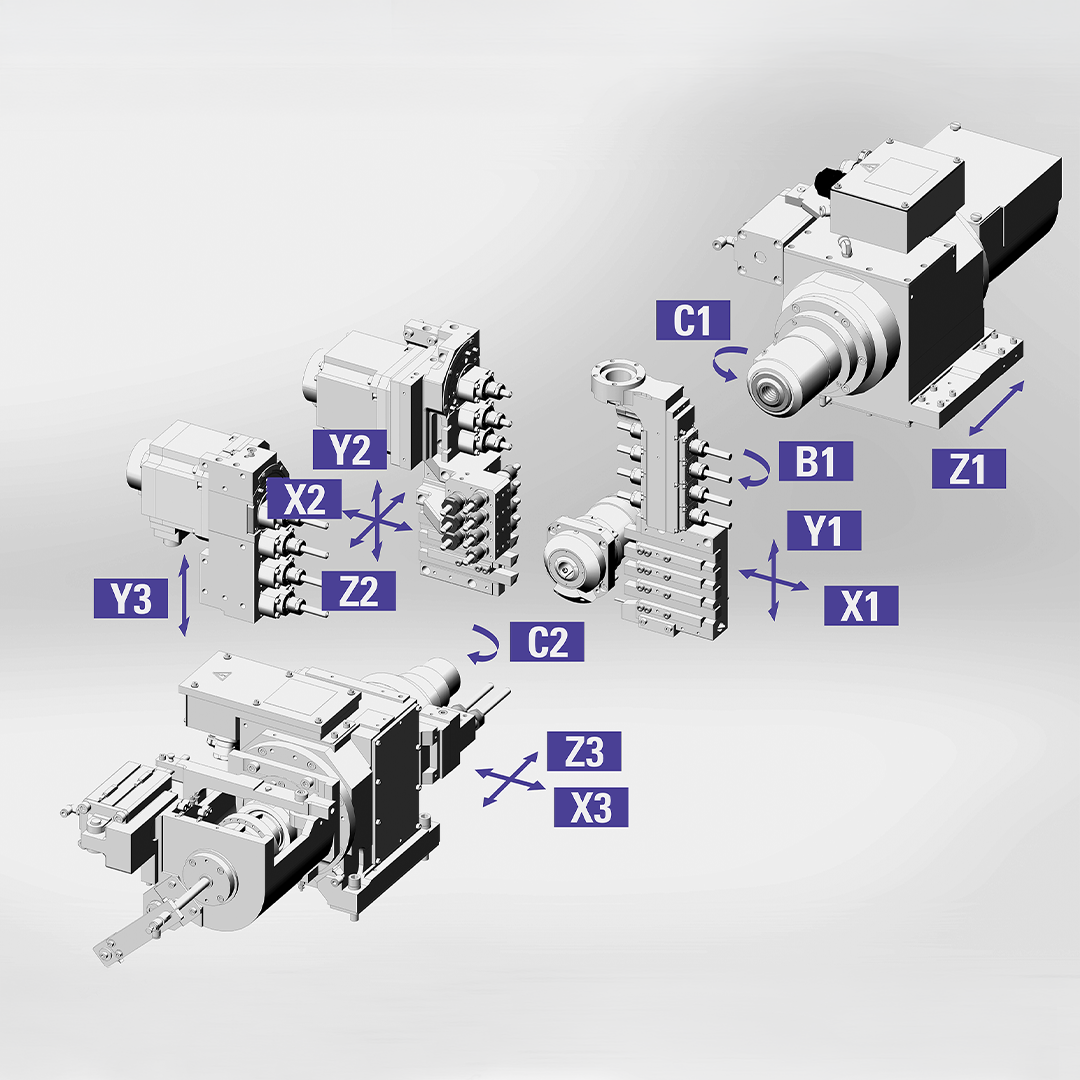

Main side

Number of axis (total)

9 + 2

Main spindel

Z1 + C1

Gang tool post

2 independent gang tool posts

Maximum machining Ø (mm)

25 (standard)

Maximum headstock stroke (mm)

250

Maximum spindle speed (Rpm)

10.000

GBL- Specification

Standard

Motor Power (kW)

5,5

Gang tool post

Turning tools

4 x 16mm

Cross rotary tools

Maximum speed (Rpm)

9.000

Motor Power (kW)

2,2

Sleeve holder for fix tools

3 (optional holder)

Axis

X1 / Y1

Front drill block

Fix tools

3 (optional holder)

Back side

Back spindle

Z3 / X3 / Y3 / C2

Maximum machining Ø

Motor Power (kW)

3,7

Maximum spindle speed (Rpm)

10.000

Back working tools

Number of tools

4R cross (standard) + X (optional)

Maximum speed (Rpm)

6.000

Motor Power (kW)
