Cincom

L12-1M7

Swiss-Type Lathe

Machining of workpieces with small diameter with or without guide bush and high-speed spindle with 15,000 rpm.

It is a simple matter to fit or remove the guide bushing so that the machine configuration can be adapted to suit the workpiece to be machined.

As an automatic lathe that combines two roles in a single unit, it can be used to machine both long and short workpieces effectively. It also shows uncompromising performance as a machine for high-speed, small- diameter applications. It shortens cycle times with a front spindle capable of high-speed rotation of 15,000 rpm and 10,000 rpm rotary tools. The L series that has built Cincom’s history is now creating the new ‘standard’ in automatic lathes for function and performance.

About CITIZEN

For over a century, Citizen has defined precision engineering, evolving from a premier horologist into a global leader in CNC machining. Renowned for their Cincom and Miyano lines, Citizen specializes in Swiss-type lathes that deliver unmatched accuracy for complex, small-diameter components. By pioneering technologies like Low Frequency Vibration (LFV), they provide manufacturers in the medical, aerospace, and electronics sectors with the reliability needed to master high-volume, high-tolerance production.

Technical Data & Specification

Dimension (mm)

1.760 x 820 x 1.610

Weight (kg)

1.750

Control Unit

Meldas 70M

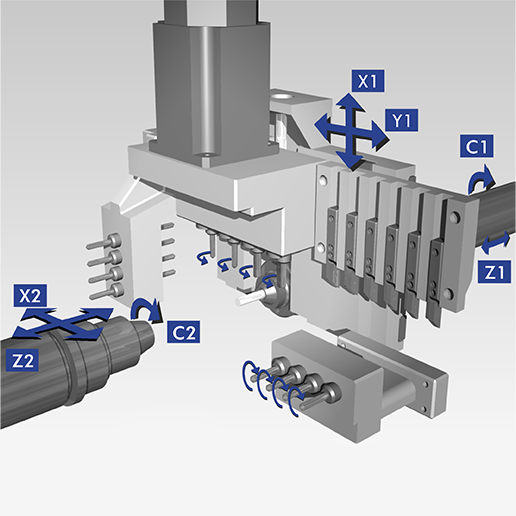

Main side

Number of axis (total)

5 + 2

Main spindel

Z1 + C1

Gang tool post

X1 / Y1

Maximum machining Ø (mm)

Maximum headstock stroke (mm)

135

Maximum spindle speed (Rpm)

15.000

GBL- Specification

Standard

Motor Power (kW)

3,7

Gang tool post

Turning tools

6 x 12mm

Cross rotary tools

4 + X (OP)

Maximum speed (Rpm)

10.000

Motor Power (kW)

0,8

Sleeve holder for fix tools

4 front + 4 back

Axis

X1 / Y1

Front drill block

Fix tools

4 front + 4 back

Back side

Back spindle

Z2 / X2 / C2

Maximum machining Ø

Motor Power (kW)

0,75

Maximum spindle speed (Rpm)

10.000

Back working tools

Number of tools

4 /Fix or Rotary)

Maximum speed (Rpm)

9.000

Motor Power (kW)

0,75
