Cincom

L20-3M10

Swiss-Type Lathe

Our bestselling L20 completely renovated.

The L20 series impresses with reduced downtimes and optimised optimised processes thanks to innovative LFV technology for precise front and back machining. A more powerful spindle shortens cycle times, while six turning tools ensure flexible machining and avoid bottlenecks. The high-end L20-3M12B5 model offers simultaneous 5-axis control for complex CAM-controlled manufacturing processes. The large touchscreen enables intuitive and efficient operation. Sustainability is a top priority: The L20 series reduces CO2 emissions, optimises air consumption and shows relevant environmental information directly on the display – for resource-saving and economical production.

About CITIZEN

For over a century, Citizen has defined precision engineering, evolving from a premier horologist into a global leader in CNC machining. Renowned for their Cincom and Miyano lines, Citizen specializes in Swiss-type lathes that deliver unmatched accuracy for complex, small-diameter components. By pioneering technologies like Low Frequency Vibration (LFV), they provide manufacturers in the medical, aerospace, and electronics sectors with the reliability needed to master high-volume, high-tolerance production.

Technical Data & Specification

Dimension (mm)

2.222 x 1.265 x 1.835

Weight (kg)

2.680

Control Unit

Meldas M820VW

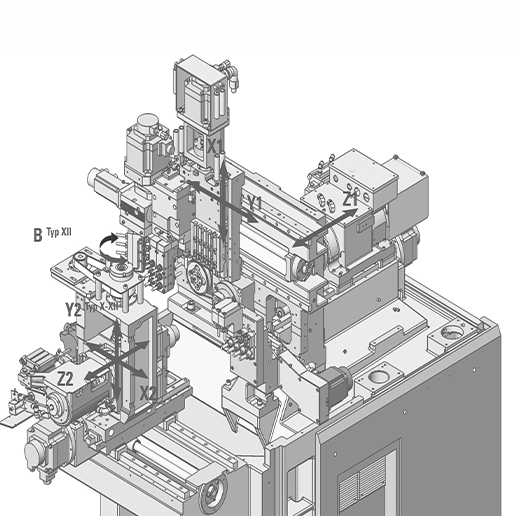

Main side

Number of axis (total)

6 + 2

Main spindel

Z1 + C1

Gang tool post

X1 / Y1

Maximum machining Ø (mm)

20 / 25

Maximum headstock stroke (mm)

200

Maximum spindle speed (Rpm)

10.000

GBL- Specification

Standard

Motor Power (kW)

5,5

Gang tool post

Turning tools

5 x 12mm + 1 x 16mm

Cross rotary tools

7 x Cross + X

Maximum speed (Rpm)

9.000

Motor Power (kW)

2,2

Sleeve holder for fix tools

Axis

X1 / Y1

Front drill block

Fix tools

Back side

Back spindle

X2 / Y2 / Z2 / C2

Maximum machining Ø

20 / 25

Motor Power (kW)

3,7

Maximum spindle speed (Rpm)

10.000

Back working tools

Number of tools

4 x fix + 4 x (fix or rotary)

Maximum speed (Rpm)

7.500

Motor Power (kW)

0,75
