Cincom

L32-1M12

Swiss-Type Lathe

The successful Cincom L32, now even more versatile and flexible.

A best-selling machine with a legacy at Cincom, the next generation L32 is launched with 3 new models in modular design. Ranging from a 5-axis machine with excellent cost performance to a high-end machine equipped with B axis and back tool post Y axis. A wide range of modular tooling ensures that the new L32 is incredibly versatile and flexible to meet your specific current and future production demands.

About CITIZEN

For over a century, Citizen has defined precision engineering, evolving from a premier horologist into a global leader in CNC machining. Renowned for their Cincom and Miyano lines, Citizen specializes in Swiss-type lathes that deliver unmatched accuracy for complex, small-diameter components. By pioneering technologies like Low Frequency Vibration (LFV), they provide manufacturers in the medical, aerospace, and electronics sectors with the reliability needed to master high-volume, high-tolerance production.

Technical Data & Specification

Dimension (mm)

2.520 x 1.382 x 1.750

Weight (kg)

2.900

Control Unit

Meldas 70M

Main side

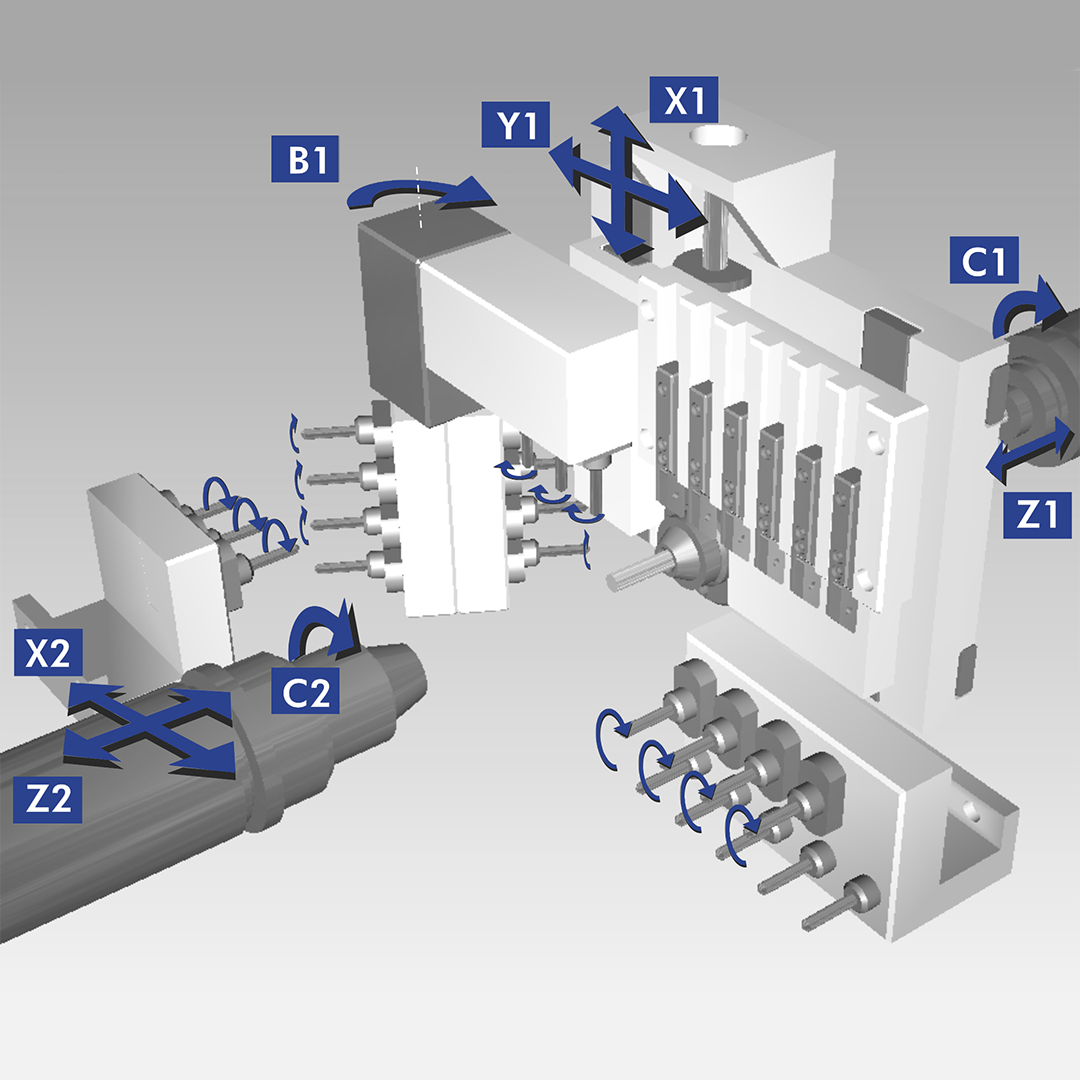

Number of axis (total)

7 + 2

Main spindel

Z1 + C1

Gang tool post

X1 / Y1 / B1

Maximum machining Ø (mm)

32 / 38

Maximum headstock stroke (mm)

320

Maximum spindle speed (Rpm)

8.000

GBL- Specification

Standard

Motor Power (kW)

7,5

Gang tool post

Turning tools

6 x 16mm

Cross rotary tools

4 + X (OP)

Maximum speed (Rpm)

6.000

Motor Power (kW)

Sleeve holder for fix tools

3 front + 3 back

Axis

X1 / Y1

Front drill block

Fix tools

3 front + 3 back

Back side

Back spindle

Z2 / X2 / Y2 / C2

Maximum machining Ø

32 / 38

Motor Power (kW)

3,7

Maximum spindle speed (Rpm)

8.000

Back working tools

Number of tools

4 Rotary + 5 Fix

Maximum speed (Rpm)

6.000

Motor Power (kW)
