Cincom

L32-2M12B5

Swiss-Type Lathe

The L32 – more axes, higher efficiency, more capabilities.

The integrated 5-axis simultaneous control (Type L32-XIIB5) enables highly precise machining of complex geometries – fast, efficient, and reliable.

Thanks to increased performance, advanced control technology, and intelligent automation, the L32-XIIB5 delivers maximum productivity with minimal energy consumption.

About CITIZEN

For over a century, Citizen has defined precision engineering, evolving from a premier horologist into a global leader in CNC machining. Renowned for their Cincom and Miyano lines, Citizen specializes in Swiss-type lathes that deliver unmatched accuracy for complex, small-diameter components. By pioneering technologies like Low Frequency Vibration (LFV), they provide manufacturers in the medical, aerospace, and electronics sectors with the reliability needed to master high-volume, high-tolerance production.

Technical Data & Specification

Dimension (mm)

3.246 x 1.438 x 1.835

Weight (kg)

3.500

Control Unit

Mitsubishi Meldas M850 LUC-V

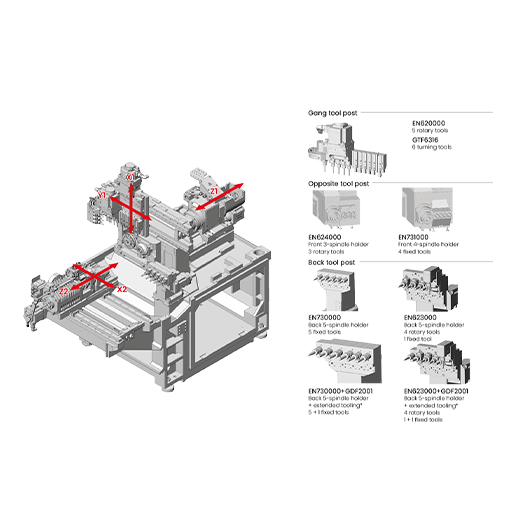

Main side

Number of axis (total)

7 + 2

Main spindel

Z1 + C1

Gang tool post

X1 / Y1 / B

Maximum machining Ø (mm)

32 / 38

Maximum headstock stroke (mm)

320

Maximum spindle speed (Rpm)

8.000

GBL- Specification

Standard

Motor Power (kW)

7,5

Gang tool post

Turning tools

6 x 16mm

Cross rotary tools

7 x Cross + X

Maximum speed (Rpm)

6.000

Motor Power (kW)

Sleeve holder for fix tools

Axis

X1 / Y1 / Z1 / B

Front drill block

Fix tools

Back side

Back spindle

X2 / Y2 / Z2 / C2

Maximum machining Ø

32 / 38

Motor Power (kW)

5,5

Maximum spindle speed (Rpm)

8.000

Back working tools

Number of tools

4 x fix + 4 x (fix or rotary)

Maximum speed (Rpm)

6.000

Motor Power (kW)
