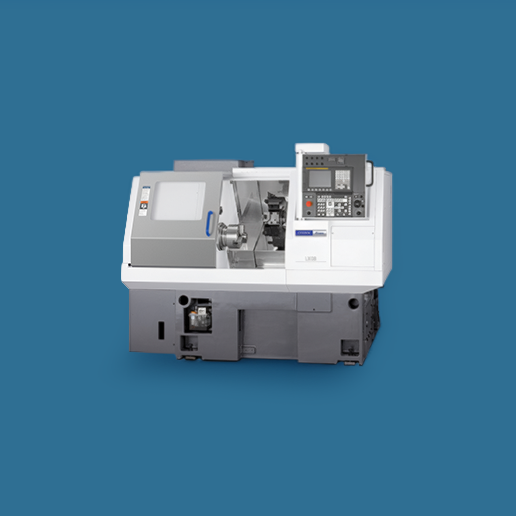

Miyano

LX08-C

High-precision Lathe

Powerful and highly rigid.

Citizen presents: An 8-inch chucking machine especially designed to comply with the basic performance required of machine tools following careful analysis.

The rigid turret uses precision scraped square guideways providing excellent vibration damping characteristics, the rigid spindle is supported by double-row cylindrical roller bearings and angular contact ball bearings, and the heavy 30° slanted bed is in a platform-like surface table where the turret and the spindle are mounted. The high levels of basic performance accomplished give consistently high machining accuracy.

About CITIZEN

For over a century, Citizen has defined precision engineering, evolving from a premier horologist into a global leader in CNC machining. Renowned for their Cincom and Miyano lines, Citizen specializes in Swiss-type lathes that deliver unmatched accuracy for complex, small-diameter components. By pioneering technologies like Low Frequency Vibration (LFV), they provide manufacturers in the medical, aerospace, and electronics sectors with the reliability needed to master high-volume, high-tolerance production.

Technical Data & Specification

Dimension (mm)

2.150 x 1.728 x 1.734

Weight (kg)

4500

Control Unit

FANUC 0i-TD

Machine capacity

Max. turning dia. (mm)

210

Distance between Spindle (mm)

320

Max. turning length (mm)

320

Max. bar capacity Ø (mm)

Chuck size SP1 (mm)

210 (8″)

Chuck size SP2 (mm)

Turret no. 1 / HD1

Programmable axis

Z1 / X1

Y-axis stroke (mm)

No. of tooling stations

Rotary tool Power (kW)

Rotary tool Speed (Rpm)

Main spindle SP1

Spindle power (kW)

11 / 7,5

Spindle torque (Nm)

112

Spindle Speed (Rpm)

4000
