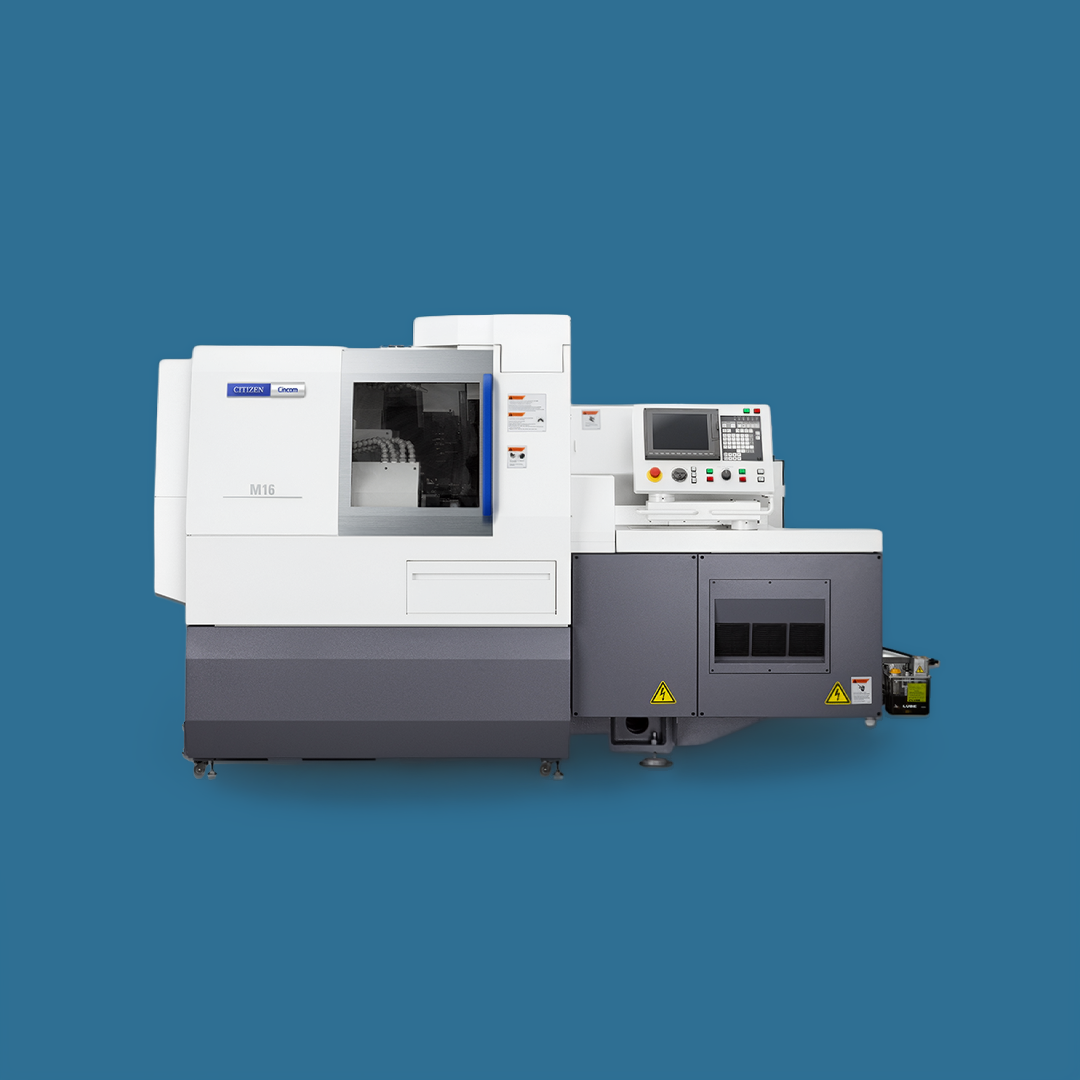

Cincom

M16-4M8

Swiss-Type Lathe

A high-end model covering Ø 16 mm.

The B axis function of rotary tools on the gang tool post and the back tool post Y axis function provide the advantage with complex shapes and secondary machining.

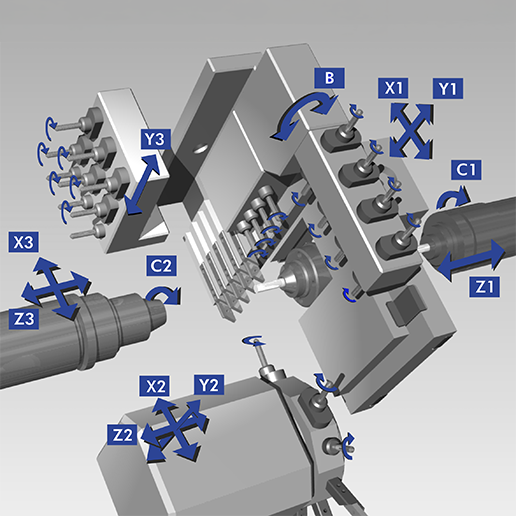

The M16 type VIII features a B axis for rotary tools on the gang tool post. It can machine angled holes and complete shapes. The swivel angle of the B axis is 135° and it can be used in both front and back machining. The back tool post is equipped with a Y axis (type VIII) and up to 9 tools can be carried. But we have not just upped the number of controlled axes and the number of mountable tools.

In addition to upping the rapid feed rate to 32 m/min and running high-speed calculation with the latest NC unit, the maximum rotational speeds of the front/back spindle and the rotary tools on the turret tool post have also been increased.

By machining with the optimum conditions for small-diameter workpieces and small-diameter drills/end mills, high productivity can be achieved.

About CITIZEN

For over a century, Citizen has defined precision engineering, evolving from a premier horologist into a global leader in CNC machining. Renowned for their Cincom and Miyano lines, Citizen specializes in Swiss-type lathes that deliver unmatched accuracy for complex, small-diameter components. By pioneering technologies like Low Frequency Vibration (LFV), they provide manufacturers in the medical, aerospace, and electronics sectors with the reliability needed to master high-volume, high-tolerance production.

Technical Data & Specification

Dimension (mm)

2.620 x 1.260 x 1.780

Weight (kg)

2.950

Control Unit

Meldas 700M

Main side

Number of axis (total)

8 + 2

Main spindel

Z1 + C1

Gang tool post

X1 / Y1 / B1

Maximum machining Ø (mm)

Maximum headstock stroke (mm)

200

Maximum spindle speed (Rpm)

12.000

GBL- Specification

Motor Power (kW)

3,7

Gang tool post

Turning tools

5 x 16mm

Cross rotary tools

5 + X (OP)

Maximum speed (Rpm)

8.000

Motor Power (kW)

0,7

Sleeve holder for fix tools

Axis

X1 / Y1 / B1

Front drill block

Fix tools

Back side

Back spindle

Z2 / X3 / Y3 / C2

Maximum machining Ø

Motor Power (kW)

1,5

Maximum spindle speed (Rpm)

12.000

Back working tools

Number of tools

10 / Turret + 9 / back tool post

Maximum speed (Rpm)

8.000

Motor Power (kW)

0,75
