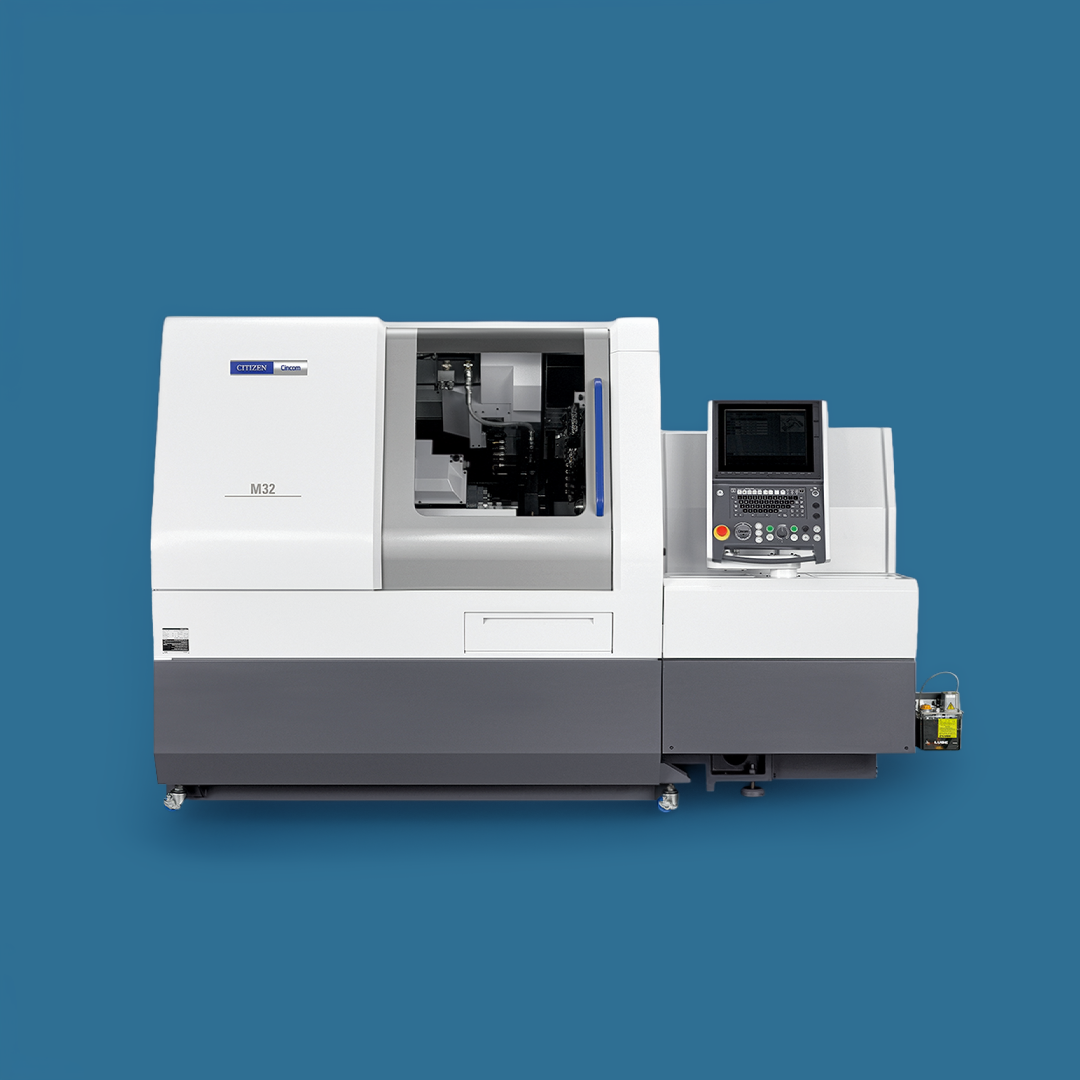

Cincom

M32-5M8

Swiss-Type Lathe

Ultimate Gang + Turret: The M32 is reborn.

Adoption of newly designed cover to provide workability, as well as a new HMI operating panel for the new NC unit and touch panel provides improved operability and productivity. Additionally, structural analysis was performed to achieve a highly rigid design that provides an optimal balance between strength and weight at small footprint to greatly improve the rigidity required during machining. The turret tooling has been completely redesigned with a conversion to single-drive for rotary tools and strengthening of the rotary tools motor.

The gang tool post has been equipped with a type VIII B-axis spindle for contouring by use of five- axis control.

The back tool post has been equipped with adjustable-angle type VII and VIII spindles to provide complex machining in combination with the Y axis. Improved back machining improves the degree of freedom in machining process allocation. A 5.5/7.5 kW high-output spindle motor has been adopted for main and back spindles. You can switch between use and non-use of guide bushes for compatibility with 38-mm oversize specifications.

About CITIZEN

For over a century, Citizen has defined precision engineering, evolving from a premier horologist into a global leader in CNC machining. Renowned for their Cincom and Miyano lines, Citizen specializes in Swiss-type lathes that deliver unmatched accuracy for complex, small-diameter components. By pioneering technologies like Low Frequency Vibration (LFV), they provide manufacturers in the medical, aerospace, and electronics sectors with the reliability needed to master high-volume, high-tolerance production.

Technical Data & Specification

Dimension (mm)

2.860 × 1.465 × 1.900

Weight (kg)

4.300

Control Unit

Meldas 850W

Main side

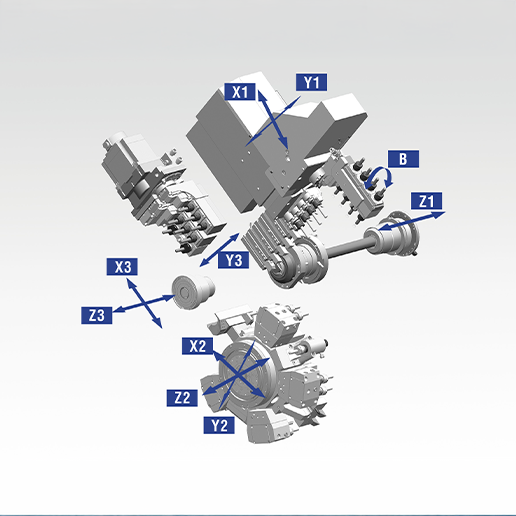

Number of axis (total)

10 + 2 (simult. 5-axis processing)

Main spindel

Z1 + C1 (Pneumatic Clamping Sys.)

Gang tool post

X1 / Y1 / B1

Maximum machining Ø (mm)

32 / 38

Maximum headstock stroke (mm)

320

Maximum spindle speed (Rpm)

8.000

GBL- Specification

Standard

Motor Power (kW)

7,5

Gang tool post

Turning tools

5 x 16mm

Cross rotary tools

4 Cross + 4 Front / 4 Back (B-axis)

Maximum speed (Rpm)

9.000

Motor Power (kW)

2,2

Sleeve holder for fix tools

Optional

Axis

X1 / Y1

Front drill block

Fix tools

Optional

Back side

Back spindle

Z3 / X3 / Y3 / C2

Maximum machining Ø

32 / 38

Motor Power (kW)

7,5

Maximum spindle speed (Rpm)

8.000

Back working tools

Number of tools

ma. 9 (Rotary or Fix / Angular Adj.)

Maximum speed (Rpm)

Motor Power (kW)
