Cincom

R5 04-7

Swiss-Type Lathe

Cincom’s answer for machining ultra-small-diameter precision components.

The acclaimed R-series of automatic lathes dedicated to small-diameter machining has evolved.

For machining watch parts, probe/connector pins, medical parts and other ultra-small-diameter components, we have completely revised the machine design – in pursuit of ‘the ideal machine’ with ‘true-ease-of-use’. A 20,000 rpm spindle achieves the optimum cutting speed for the workpiece. This in combination with a tool post integrated with the guide bushing mount to suppress thermal displacement and feed axis drives combining linear and servo motors help to maximise accuracy, compactness and low energy consumption. Cincom’s solution for machining ultra-small-diameter parts is here.

About CITIZEN

For over a century, Citizen has defined precision engineering, evolving from a premier horologist into a global leader in CNC machining. Renowned for their Cincom and Miyano lines, Citizen specializes in Swiss-type lathes that deliver unmatched accuracy for complex, small-diameter components. By pioneering technologies like Low Frequency Vibration (LFV), they provide manufacturers in the medical, aerospace, and electronics sectors with the reliability needed to master high-volume, high-tolerance production.

Technical Data & Specification

Dimension (mm)

1.465 x 535 x 1.633

Weight (kg)

1.100

Control Unit

Fanuc 32i

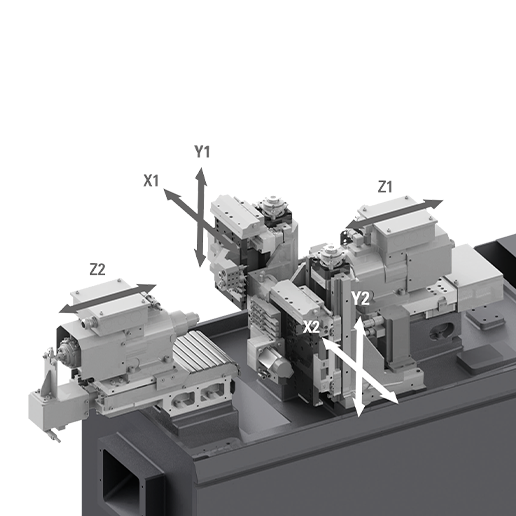

Main side

Number of axis (total)

6 + 2

Main spindel

Z1 + C1

Gang tool post

X1 / Y1

Maximum machining Ø (mm)

Maximum headstock stroke (mm)

Maximum spindle speed (Rpm)

20.000

GBL- Specification

Motor Power (kW)

0,75

Gang tool post

Turning tools

7 x 8mm

Cross rotary tools

2 (3-OP)

Maximum speed (Rpm)

8.000

Motor Power (kW)

0,1

Sleeve holder for fix tools

4 front + back

Axis

X1 / Y1

Front drill block

Fix tools

4 front + back

Back side

Back spindle

Z2 / C2

Maximum machining Ø

Motor Power (kW)

0,75

Maximum spindle speed (Rpm)

10.000

Back working tools

Number of tools

2 (3-Op)

Maximum speed (Rpm)

8.000

Motor Power (kW)

0,1
