FMB

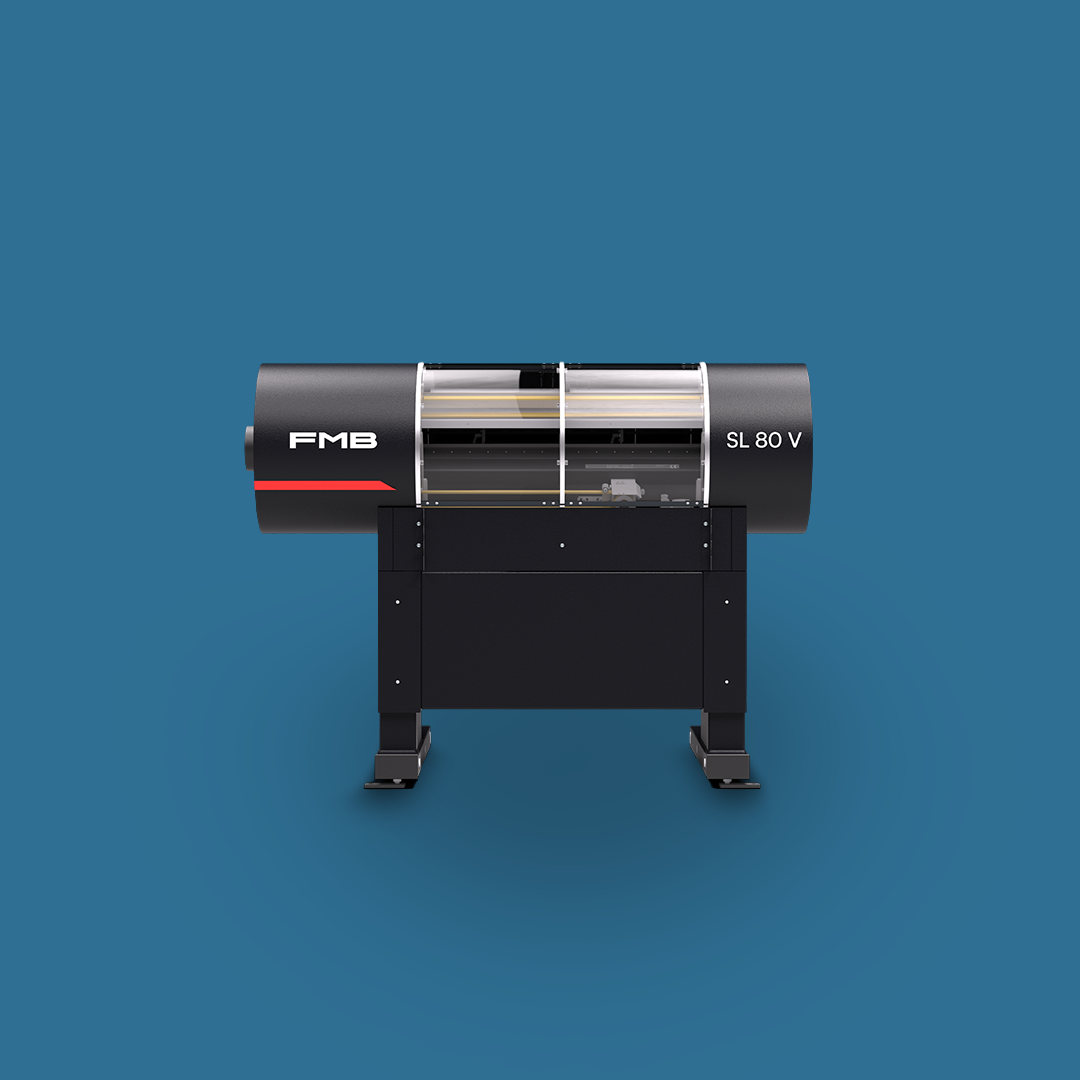

SL 80 V

Bar Feeder

The short bar feeder from FMB for material bar diameters of up to 80 mm. Automatic adjustment of the diameter via input on the control panel for fast set-up work. Servo-electric design without pneumatic components for efficient operation on the machine tool.

About FMB

In the world of CNC machining, automation is the key to profitability. FMB is a global leader in bar loading technology, providing the essential link that transforms a high-quality lathe into a fully automated production powerhouse. Designed and engineered in Germany, FMB bar feeders are renowned for their stability, speed, and seamless integration with the world’s leading CNC brands.

Technical Data & Specification

Max. bar diameter (mm)

Bar length 1)

1.100 / 1.400 / 1.600

Material bar (mm) / Stock length (mm)

6 – 80

Loading capacity (mm)

560

Loading capacity (min. Ø/max. Ø)

93 at 6 / 7 at 80

Remnant length (mm)

Loading time (sec)

15 / 16 / 19

Feed rate (mm/s)

0 – 1.500

Return speed (mm/s)

0 – 1.500

Operating voltage (V)

3 x 190 – 480

Power requirement (kW)

Compressed air connection (MPa (bar))

Weight (kg)

530 / 570 / 600

Machine tool stroke (mm)

Machine Life Cycle Services

we support our customers throughout the entire process – from the initial technical consultation to commissioning and long-term support during ongoing operations.

Pre-sales – Technical Consulting & Selection

Sales & Integration – Implementation & Commissioning

After-sales – Service & Long-term Support
