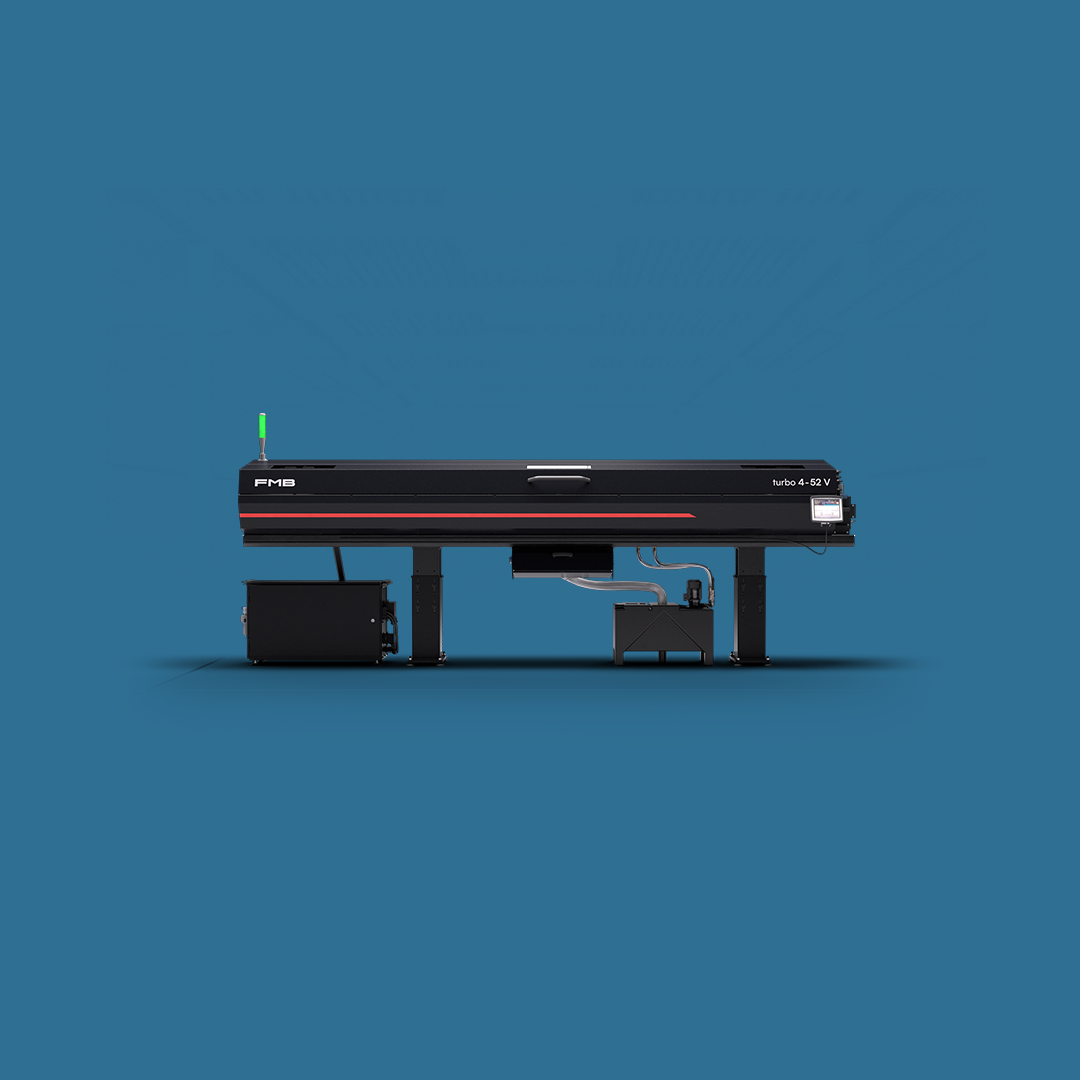

FMB

turbo 4-52 V

Bar Feeder

The loading magazine from FMB for short automatic lathes in the medium diameter range. The V-technology enables automatic diameter adjustment with minimum changeover times. The swivel-in feed rod enables compact dimensions.

About FMB

In the world of CNC machining, automation is the key to profitability. FMB is a global leader in bar loading technology, providing the essential link that transforms a high-quality lathe into a fully automated production powerhouse. Designed and engineered in Germany, FMB bar feeders are renowned for their stability, speed, and seamless integration with the world’s leading CNC brands.

Technical Data & Specification

Max. bar diameter (mm)

Bar length 1)

2.200 / 3.200 / 3.800 / 4.200 / 6.200

Material bar (mm) / Stock length (mm)

4 – 52

Loading capacity (mm)

290

Loading capacity (min. Ø/max. Ø)

62 at 4 / 5 at 52

Remnant length (mm)

450

Loading time (sec)

22,5

Feed rate (mm/s)

0 – 2.000

Return speed (mm/s)

0 – 2.000

Operating voltage (V)

3 x 190 – 480

Power requirement (kW)

2,5

Compressed air connection (MPa (bar))

0,6 (6)

Weight (kg)

1.150 / 1.250 / 1.300

Machine tool stroke (mm)
