FMB

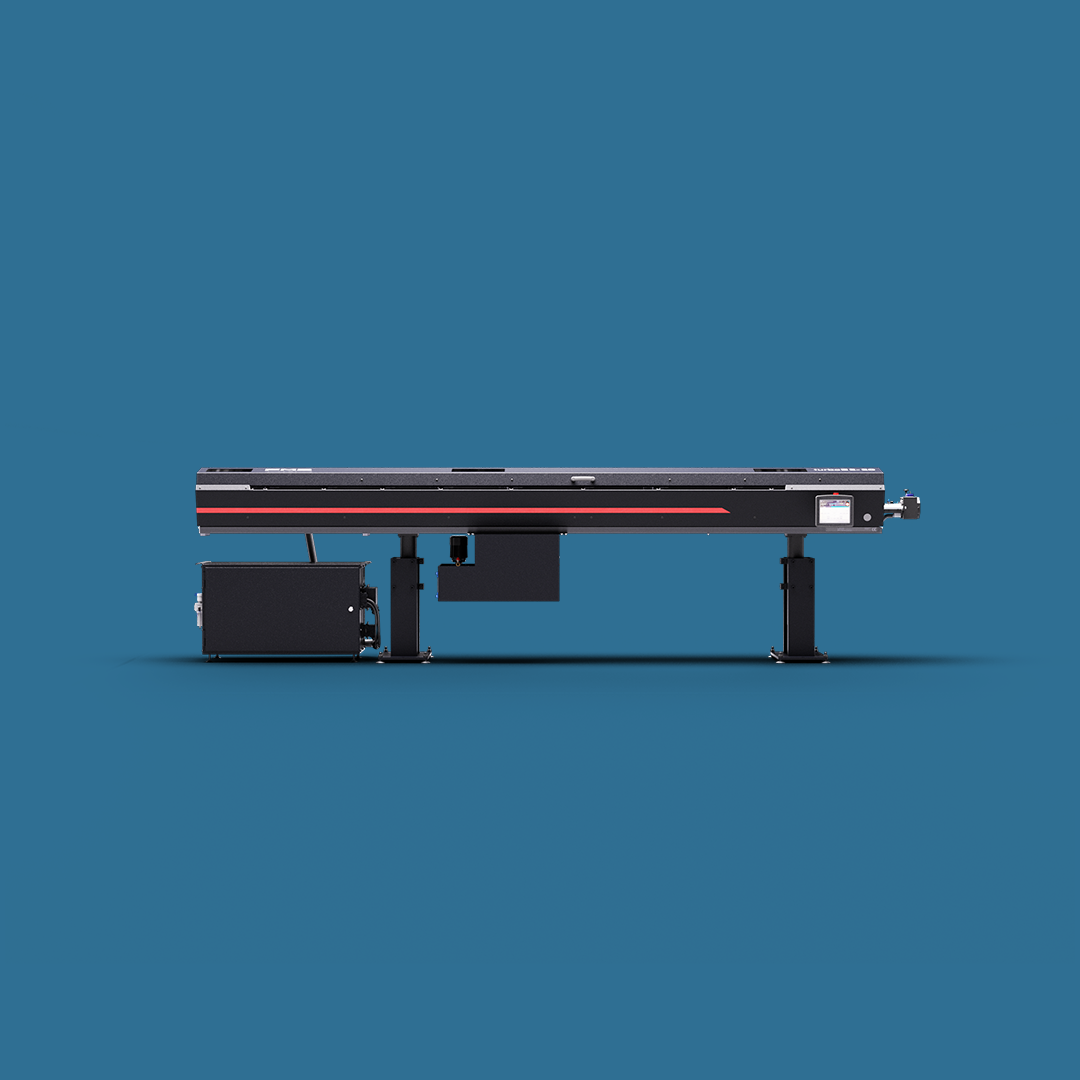

turbo RS 2-20

Bar Feeder

The loading magazine from FMB for sliding headstock automatic lathes in the small diameter range. The innovative RS technology guarantees the highest guide quality in the turning process. The retractable feed rod enables compact dimensions.

About FMB

In the world of CNC machining, automation is the key to profitability. FMB is a global leader in bar loading technology, providing the essential link that transforms a high-quality lathe into a fully automated production powerhouse. Designed and engineered in Germany, FMB bar feeders are renowned for their stability, speed, and seamless integration with the world’s leading CNC brands.

Technical Data & Specification

Max. bar diameter (mm)

Bar length 1)

2.200 / 3.200 / 4.200mm

Material bar (mm) / Stock length (mm)

2-23

Loading capacity (mm)

235

Loading capacity (min. Ø/max. Ø)

117 at 2 mm / 10 at 23 mm

Remnant length (mm)

420

Loading time (sec)

Feed rate (mm/s)

0 – 750

Return speed (mm/s)

0 – 750

Operating voltage (V)

3 x 190 – 480

Power requirement (kW)

1,5

Compressed air connection (MPa (bar))

0,6 (6)

Weight (kg)

450 / 550 / 650

Machine tool stroke (mm)

up to 400

Machine Life Cycle Services

we support our customers throughout the entire process – from the initial technical consultation to commissioning and long-term support during ongoing operations.

Pre-sales – Technical Consulting & Selection

Sales & Integration – Implementation & Commissioning

After-sales – Service & Long-term Support
